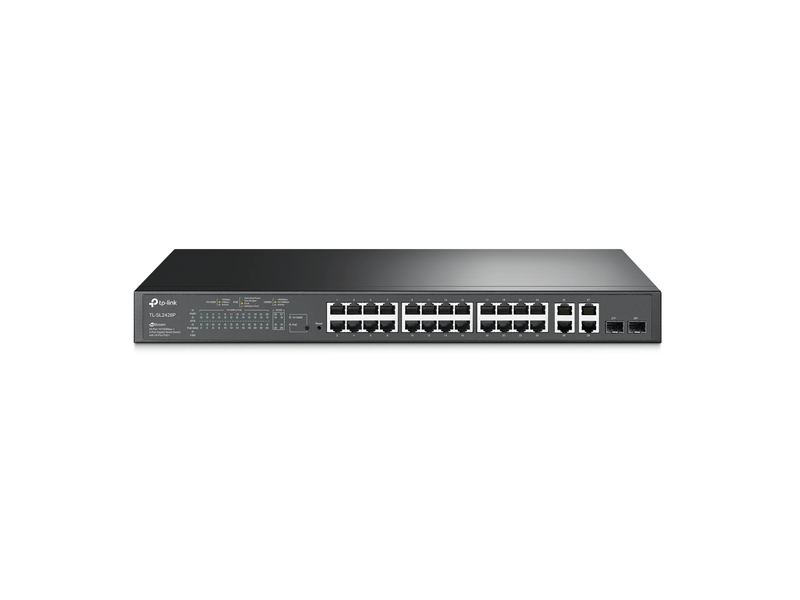

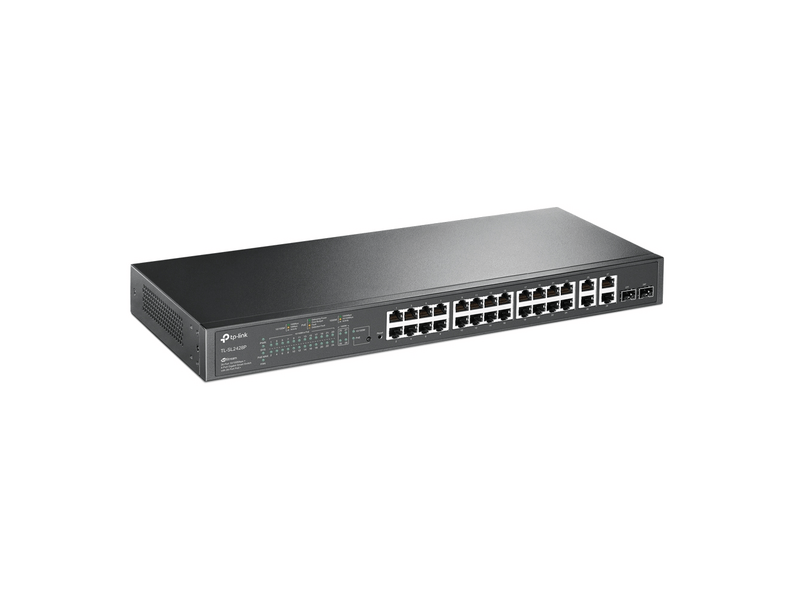

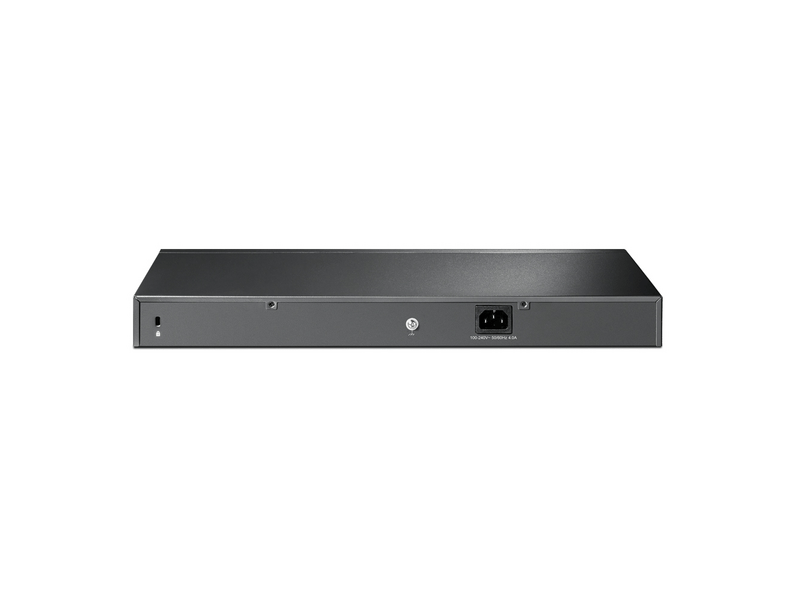

TP-LINK TL-SL2428P 24-Port Smart Asztali Switch

TP-LINK TL-SL2428P 24-Port Smart Asztali Switch

24x100Mbps (24xPoE) + 4x1000Mbps + 2xGigabit SFP, menedzselhető

HARDVER JELLEMZŐK

• Szabványok és protokollok: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
• Csatlakozások:
  • 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2 Combo Gigabit Uplink RJ45/SFP Ports
• Hálózati összeköttetés:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 1000BASE-X: MMF, SMF
• Ventilátorok száma: 2
• Fizikai biztonsági zár: Igen
• PoE összeteljesítmény: 250 W
• Méretek (Sz x Mé x Ma): 17.3*7.1*1.7 in.(440*180*44 mm)
• Felszerelés: Rack beépíthető
• Max. áramfelvétel:
  • 18.8 W (220 V / 50 Hz with no PD connected)
  • 286.7 W (220 V / 50 Hz with 250 W PD connected)

MŰKÖDÉSI JELLEMZŐK

• Switching teljesítmény: 12.8 Gbps
• Csomagtovábbítási sebesség: 9.5 Mpps
• Fizikai (MAC) cím tábla: 8K
• Jumbo Frame: 9216 Bytes

SZOFTVER JELLEMZŐK

• QoS (szolgáltatás minősége):
  • 802.1p CoS/ DSCP priority
  • 8 priority queues
  • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control: Port/Flow based Rating Limit
  • Smoother Performance
  • Actions for flows: Mirror(to supported interface), Redirect(to supported interface), Rate Limit, QoS Remark
  • Storm Control: Multiple Control Modes(kbps/ratio/pps), Broadcast/Multicast/Unknown-Unicast Control
• L2 jellemzők:
  • Link Aggregation: Static link aggregation, Up to 8 aggregation groups and up to 8 ports per group, 802.3ad LACP
  • Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP, STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
  • Loopback Detection: Port based, VLAN based
  • Flow Control: 802.3x Flow Control, HOL Blocking Prevention
  • Mirroring: Port Mirroring, One-to-One, Many-to-One, Tx/Rx/Both, CPU Mirroring
• L2 Multicast :
  • Supports 511 (IPv4, IPv6) IGMP groups
  • IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication
  • IGMP Authentication
  • MVR
  • MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast
  • Multicast Filtering: 256 profiles and 16 entries per profile
• IPv6 Support:
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery(MLD) Snooping
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• VLAN:
  • VLAN Group: Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 12 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
  • Voice VLAN
• Hozzáférés-jogosultsági lista (ACL):
  • Time-based ACL
  • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
  • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy: Mirroring, Redirect, Rate Limit, QoS Remark
  • ACL apply to Port/VLAN
• Biztonság:
  • IP-MAC-Port Binding: DHCP Snooping, ARP Inspection, IPv4 Source Guard
  • IPv6-MAC-Port Binding: DHCPv6 Snooping, ND Detection, IPv6 Source Guard
  • DoS Defend
  • Static/Dynamic Port Security: Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
  • IP/Port/MAC based access control
  • 802.1X: Port based authentication, Mac based authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IPv6:
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
• L3 jellemzők:
  • 16 IPv4/IPv6 Interfaces
  • Static Routing: 48 static routes
  • Static ARP: 128 static entries
  • 316 ARP Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay: DHCP interface relay, DHCP VLAN relay
  • DHCP L2 Relay
• Vezérlés:
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3: Trap/Inform, RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
• MIBs:
  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIBs

• Tanúsítványok: CE, FCC, RoHS
• Csomagolás tartalma:
  • TL-SL2428P
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
• Rendszerkövetelmény: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
• Környezet:
  • Operating Temperature: 0℃~50℃ (32℉~122℉);
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
